What Is a Reveal on a Window? Your Complete Guide
You’re ready to order a made-to-measure fly screen. You’ve got the window width, the height, maybe even a photo on your phone. Then the supplier asks for the reveal measurement, and everything slows down.
That’s normal. A lot of people know what the glass is, what the frame is, and what the sill is. The reveal sits in that awkward middle ground. It’s part building detail, part fitting surface, and it matters far more than most homeowners realise. If you get it wrong, the screen may not sit flush, the mechanism may catch, or the frame may look like an afterthought.
If you’ve been wondering what is a reveal on a window, think of this as the practical version. Not the architect’s definition alone, but the one that helps you measure properly, choose the right fly screen, and avoid a poor fit.
What Is a Window Reveal and Why Does It Matter
The simplest way to understand a window reveal is this. It’s the inside surface of the opening that the window sits within.
If you look at a wall opening as a box, the window reveal is the set of sides inside that box. You’ll see it between the window frame and the finished wall surface. On a typical window, that means the top, both sides, and often the bottom where it meets the sill area.
For a homeowner, this sounds minor until it affects a purchase. For an installer, it’s one of the first things to check because it tells you where a product can be fixed. A fly screen doesn’t float in space. It needs a mounting position, enough depth, and enough clearance to open and close cleanly.
Practical rule: If you’re ordering a bespoke screen, the reveal often matters more than the overall glass size.
Reveals also affect the finished look. A screen fitted neatly within a square, clean reveal usually looks built in. The same screen forced onto an unsuitable surface can look bulky or sit proud of the wall. That difference is what separates a tidy installation from a compromise.
A good reveal helps with more than appearance. It gives the fitter a stable surface, helps line the frame up properly, and makes it easier to achieve a close, consistent fit. That’s especially important with custom fly screens, where a few millimetres can decide whether the frame sits neatly or rubs every time you use it.

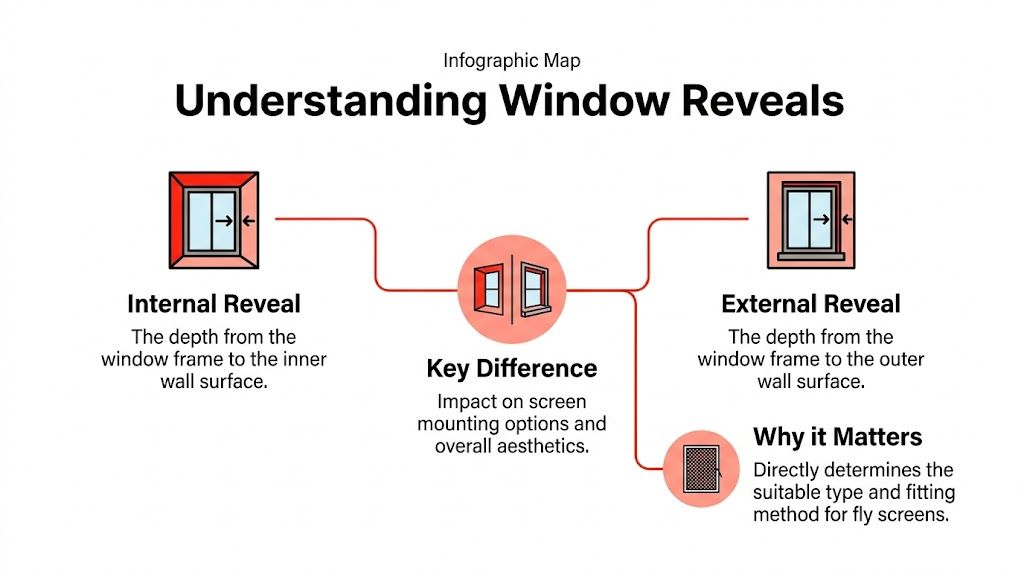

Internal vs External Reveals The Core Concepts
A lot of measuring mistakes start here. Someone checks the window from inside, orders a bespoke fly screen, then finds the outside edge looks completely different. The screen itself may be made correctly, but it was designed for the wrong mounting area.
An internal reveal is the surface of the opening you see from inside the room. An external reveal is the surface you see from outside the building. They belong to the same window opening, but they often differ in depth, angle, and finish because the wall is built up in layers.
Why the two reveals are often different
A simple comparison helps here. The window is the opening you use, but each side of the wall presents a different edge around it. Inside, you might have plasterboard, trim, and a neat square finish. Outside, you might have brick, render, cladding, or a sill detail that changes the shape completely.
That difference matters because a fly screen has to fix to a real surface, not to the idea of a window. If the screen will sit on the room side, the internal reveal usually matters most. If it will be fixed outside, the external reveal becomes the working surface.
This is why inside measurements do not automatically tell you what is happening outside.
Why builders use reveals at all
Reveals help the window sit properly within the wall construction and give the opening a finished edge. They also create a defined surface for trims, linings, sealants, and fixings. For an installer, that last part is the practical one. The reveal is often the area that decides whether a product can sit square and close without rubbing.
With bespoke fly screens, confusion often turns into costly errors. A homeowner may focus on the glass size, but the fitter is looking at the reveal because that is where the frame, channel, or cassette may need to sit. If you ever need to maintain the screen later, details such as frame access and mesh retention matter too, especially if you are learning how to replace window screen mesh.
Here is the difference in fitting terms:
- Internal reveal: Usually the main reference point for room-side fly screens, especially if you want the frame to sit neatly within the opening.
- External reveal: More important when the screen or fixing method sits outside, or when the outer wall shape limits access.
- Shape and squareness: These tell you whether the reveal is usable for a made-to-measure product.
- Finish and condition: Plaster blobs, bowed timber, uneven render, and damaged corners can all reduce the usable fixing area.
A reveal is more than the edge around a window. It is the actual mounting zone that determines where a custom screen can be fixed and how neatly it will sit.
When someone asks for the reveal size, they are really asking a more useful question. Where will the fly screen live, and is that space suitable for a clean fit?
How Reveal Depth Dictates Your Fly Screen Choice
You can have the right mesh, the right colour, and the right style on paper, then still end up with a screen that rubs, rattles, or never sits quite flush. In many cases, the primary deciding factor is the reveal depth.
For bespoke fly screens, reveal depth is the space budget. It tells you how much room you have for a frame, a cassette, side channels, fixings, and the small clearances that let everything open and close properly. If that budget is tight, your product options change fast.
Deep reveal, shallow reveal, or almost none
A deep reveal usually gives you more fitting choices. The screen hardware can sit back inside the opening, which often looks neater and keeps the unit better protected from knocks. Retractable screens benefit from this because the cassette and guide channels need a clean, straight place to live.
A shallow reveal needs more care. You may still be able to fit a slim fixed frame or a low-profile magnetic system, but every millimetre starts to matter. Window handles, trickle vents, plaster lips, and beads of sealant can all steal usable depth.
Some windows have almost no practical reveal at all. The recess may be too narrow, too uneven, or broken up by trims and hardware. In that case, a face-fit screen fixed to the surrounding frame or wall is often the better answer, because it works with the opening you have instead of the one you wish you had.
What depth changes in real use
Reveal depth affects the way a screen behaves day after day, not just how it is installed.
A retractable unit needs room for its moving parts. A hinged screen needs enough set-back and clearance to swing without clipping the reveal or the handle. Even a simple fixed screen needs a flat landing area so the frame can sit square and seal consistently around the edge.
The easiest way to explain it to a homeowner is this: the reveal is the parking bay for the fly screen. If the bay is too shallow, crooked, or blocked, the screen may still go in, but it will not park cleanly.
Depth also affects maintenance. If the frame sits too tightly against nearby trims or hardware, removing it for cleaning or repair becomes awkward. That matters if you are deciding between replacing a whole unit and learning how to replace window screen mesh in an existing frame.
Matching the reveal to the product
A practical way to assess the opening is to match the reveal condition to the screen style you are considering:
| Reveal situation | Usually suits | Main thing to check |
|---|---|---|
| Deep and square | Retractable or hinged | Room for cassette, channels, or swing |
| Shallow but even | Slim fixed or magnetic style | Handle clearance and frame projection |
| Uneven or interrupted | Bespoke frame or adapted fixing method | Packing, scribing, and obstacle clearance |
| Flush or no usable recess | Face-fit screen | Strength and flatness of the fixing surface |
Premier Screens Ltd supplies bespoke fly screens for UPVC and timber openings in retractable, magnetic, hinged, and sliding formats, which is useful context because reveal depth often decides which of those formats can be fitted cleanly.
The main lesson is simple. The reveal depth does not just influence the choice of fly screen. It often makes the choice for you.
How to Measure Your Window Reveal for a Bespoke Screen
Most measuring mistakes happen because people take one width, one height, and stop there. Window openings are rarely that honest. Plaster can belly out, timber can move, and older walls can wander off square.
Measure the reveal like an installer, not like you’re buying a photo frame.
What you need before you start
Keep it simple:
- Tape measure: A rigid one is easier than a soft sewing tape.
- Notepad or phone: Record each measurement separately.
- Step stool if needed: Only if you can use it safely.
- Straight eye-line: Don’t guess from an angle.
If the window already has blinds, catches, or trim in the way, note that down as well. Those details often matter as much as the raw size.
The measurements to take
Take these in the reveal where the screen will sit:
- Width at the top
- Width at the middle
- Width at the bottom
- Height on the left
- Height at the centre
- Height on the right
- Depth of the reveal
- Any obstructions, such as handles, trickle vents, alarm sensors, or proud plaster edges
Use the smallest width and the smallest height as your working reference unless the supplier asks for deductions or fitting allowances in a different way. For bespoke orders, many manufacturers prefer the raw measurements so they can apply their own tolerances.
Measure across the surfaces where the screen frame will actually touch, not just the widest open space your tape happens to reach.
Why depth and clearance matter
A common oversight occurs when people measure the opening but forget the wall finish. In UK construction, reveals need to accommodate plasterboard of typically 12.5 mm plus timber framing of typically 38 to 50 mm, which creates a recess that affects screen integration. The frame has to sit flush with the internal wall line, and the mesh plane and any retractable mechanism need enough clearance to operate cleanly, as described in this guide to internal and external reveals of openings.
That matters because a reveal can look deep enough until you notice the handle projects into the same space as the screen track.
A quick field check
Before you send measurements, ask yourself these questions:
- Is the reveal square enough? Compare top and bottom widths.
- Is the sill level? A sloping bottom edge may need special allowance.
- Does anything project into the opening? Handles and vents are common culprits.
- Will the screen move freely? Think about opening the window and operating the screen.
If you’re unsure, take photos straight on and from the side. A good set of photos often explains what a number alone can’t.
Common Reveal Problems and Their Solutions
Real homes don’t offer perfect reveals. Older houses especially like to keep things interesting. In the UK, over 2.5 million Victorian-era homes still stand, and many have non-standard openings, according to the source used for reveal size guidance and retrofit context in this reference on reveal variation. The same source notes that 65% of hospitality venues retrofit reveals for FSA-compliant screens and that made-to-measure systems can fit 95% of UPVC/timber openings, with UV-stable meshes designed to last 10+ years.
That’s the practical reason bespoke screens exist. They solve the awkward details standard sizes can’t.
Sloped sill
A sloped bottom reveal is common, particularly in older properties and some replacement window setups. If you try to fit a rigid screen frame without accounting for it, you can end up with a visible gap or a twisted frame.
The fix is usually a custom bottom arrangement. That might mean an angled cut, a shaped infill, or a different mounting position that avoids relying on the sloped section altogether.
Uneven or bowed sides
This is the classic “top fits, middle catches, bottom gaps” problem. The reveal looks square until you measure in three places.
Use the smallest true dimension for the working fit and consider whether the frame needs packing or scribing during installation. If the variation is significant, a made-to-measure screen is usually the only sensible option.
Obstructions in the reveal
Handles, vents, sensors, tile returns, and trim can all steal usable depth. The reveal might measure well on paper but still be wrong for the chosen screen type.
A quick way to avoid trouble is to treat every obstruction as part of the opening, not as an afterthought. If you’re already reviewing wider property issues, this article on common problems found in building surveys is a helpful reminder that small irregularities in walls, openings, and finishes often point to the practical fitting challenges you’ll meet later.
The best screen fitting isn’t the one with the neatest drawing. It’s the one that accounts for what’s actually in the reveal on site.
Frequently Asked Questions
Can I fit a fly screen if my window has no reveal at all
Yes, often you can. You may need a face-fit screen fixed to the frame or surrounding surface instead of a recess-fit model. The key question isn’t whether there’s a reveal in theory. It’s whether there’s a stable fixing surface and enough clearance for the screen type you want.
Which reveal matters more for a fly screen
Usually the internal reveal matters most for a screen fitted from inside the room. That’s the working area for the frame, track, or hinge position. The external reveal matters more if the screen is being fixed outside or if external details affect operation.
Do older homes make reveal measuring harder
Yes. Period properties often have openings that aren’t perfectly square, and finishes may vary from one side of the window to the other. That’s why multiple width and height measurements matter so much.
Does the frame material change what I can fit
It can. UPVC, timber, and aluminium frames all present different fixing conditions. The reveal still drives the decision, but the frame material affects how the screen is secured and whether drilling, clips, or alternative fixing methods make sense.
What if my window handle sticks into the opening
Treat the handle as part of the measuring process. Check whether the screen frame or mechanism would foul it during use. In some cases a different screen style solves the problem more neatly than trying to squeeze the original choice into too little space.
Is a bespoke screen worth it for awkward reveals
If the reveal is uneven, shallow, obstructed, or part of an older opening, bespoke usually saves time and frustration. It gives the manufacturer a chance to build around the actual opening instead of expecting the opening to behave like a standard one.
If you’d like help turning your reveal measurements into a made-to-measure screen, Premier Screens Ltd can advise on suitable options for UK homes and commercial sites, including bespoke window and door fly screens built for UPVC and timber openings.
