Commercial insect screen door
Heavy duty insect screen door
Heavy duty insect screen door
Commercial insect screen door
Heavy duty insect screen door
Heavy duty insect screen door

Commercial Insect Screen Doors

£395.00 + vat

Commercial insect screen doors are ideal for busy kitchens and other commercial premises where they will be in constant use, providing ventilation into warm kitchens whilst keeping flying insects outside.

The amplimesh diamond metal grille adds protection to the stainless steel mesh but also provides a level of security to the door. Retro fit an internal shoot bolt and you have the peace of mind that no one can open the door from the outside and they can’t access through the mesh panel!

A strong durable door, Food Safety Compliant and added levels of security make this one of our popular choices for commercial insect screen doors

Quick Reminder – if you select a sub frame then this will be the overall dimension ordered with a door to suit

Category:
Width (mm)
Height (mm)
Frame Colour
White
Brown
Subframe
Product Price: 395.00
Additional Options: 0.00
Order Total : 395.00

Description

heavy duty insect door frame

COMMERCIAL INSECT SCREEN DOORS

Commercial quality heavy duty 50 x 15mm aluminium frames finished in white or brown. Mitred corners with riveted internal strengtheners for durability.
Fly screen door middle push bar

MID PUSH BAR

The commercial insect screen doors come assembled with a mid bar providing additional strength and protection to the mesh
Fly screen door base kick plate to help protect the mesh

BASE KICK PLATE

The base kick plate will protect the mesh panel, particularly useful where staff are coming in and out carrying goods and then use their feet to push open the door
Amplimesh Grille to help protect the insect mesh

AMPLIMESH GRILLE

In addition to the stainless steel fly mesh the heavy duty door has two aluminium diamond grilles covering and protecting the door mesh openings from constant use in a busy commercial environment
Automatic Door Closer

AUTOMATIC DOOR CLOSER

The automatic door closer that is supplied as standard with these doors will close the door behind you at a controlled speed

The speed at which the door closes can be adjusted by simply turning a small screw

You can also hold the door in an open position by sliding the slip collar along the opener shaft
Removable fly screen door hinges

REMOVABLE HINGES

The doors can be removed for cleaning, or winter storage, by simply removing the pins and then the fly screen door can be lifted off the hinges

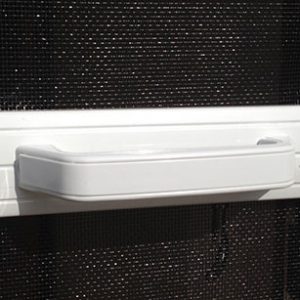

Fly screen door handle

DOOR HANDLE

Each door comes with a handle for external opening, the closer will close the door behind you
Fly screen door sub frame to clear door handles

SUB FRAME

The optional sub frame will enable you to build out your existing door frame by 50mm which will enable the fly screen door to close proud of most popular door handles.

The commercial insect screen doors are available in white or brown and delivery time is around 7 working days from the date of order.

The door will come ready assembled to your bespoke dimensions, you simply screw the metal hinges on the required side and then fix them to your existing door frame or subframe. If you order a subframe then this will be the overall dimension ordered with the door to fit onto it.

WHAT WILL I RECEIVE?

  • A ready-assembled insect screen door to your bespoke dimensions
  • Two metal hinges
  • One external handle
  • A brush strip for the base to help keep insects and rodents out
  • One self closer
  • Stainless steel mesh with our amplimesh grill covering it

MESH SPECIFICATION

  • Woven Grade 304 stainless steel insect mesh
  • Standard Wire Gauge 31
  • Wire thickness 0.3 mm
  • Aperture (hole size) 1.29 mm
  • Open area 65.78%
  • Weight 710 grams per square metre

Installation Instructions

Measuring Guide
