How to Measure UPVC Windows for Fly Screens & Parts

You're probably standing by the window with a tape measure in one hand and an order form open in another tab. The trap is obvious only after you've made it. Most measuring advice online is written for replacement windows, not for external fly screens, and those are not measured the same way.

That's where expensive mistakes start. A replacement frame usually needs a fitting deduction so the new unit can sit into the opening without binding. A fly screen often doesn't. If you copy replacement-window logic and shave millimetres off your numbers, the screen can arrive too small to mount properly, sit badly on the frame, or leave gaps where insects get through.

If you've been searching for how to measure UPVC windows, the key is knowing what you're measuring for. The right method depends on whether the product sits in the opening, on the face of the frame, or outside it on brackets. That distinction matters more than any tape measure trick.

Getting Your Measurements Right the First Time

A common initial approach is to look at the window, find a general guide, take a width and a height, and assume that's enough. It isn't.

The problem is that standard window guides teach a habit that works for one job and fails for another. If you're replacing the whole window, a fitter measures the aperture and usually allows a tolerance so the frame can be installed and packed level. For a fly screen that mounts externally, those deductions can be the exact reason the finished screen doesn't cover properly.

I see the same error repeatedly with DIY orders. The homeowner has measured carefully, but they've measured for the wrong outcome. They've followed replacement-window advice, deducted millimetres, rounded a reading, then ended up with a screen that looks tidy on paper and undersized on the house.

Workshop rule: Measure for the product you're fitting, not for the product a generic guide assumes you're buying.

That matters even more on UPVC. Frames vary. Cills vary. Beads, handles, drainage slots and trim details all affect where a screen can sit and what size it needs to be. A measurement that works for a new glazed unit won't automatically work for mesh in an aluminium frame.

There's also a sanity check worth keeping in mind. Standard UK window sizes are common enough that they help flag obvious measuring errors. A useful reference if you're also looking at wider window upgrades is this guide on how boost property value with double glazing. It's relevant because homeowners often tackle ventilation, glazing and screening at the same time, and that's when measurement assumptions get mixed up.

What a correct first attempt looks like

A good measuring job is dull. That's a compliment. It means you've removed guesswork.

• You measure the actual opening or mounting area the screen will use.
• You take multiple readings, not one.
• You record exact millimetres, not rounded estimates.
• You note obstructions before ordering, not after delivery.

If you do that, the order process becomes straightforward. If you don't, you're relying on luck.

Essential Tools and Pre-Measurement Checks

A proper measurement starts before the tape touches the frame. The tools matter, and so does knowing which parts of the window control the fit.

Use the right kit

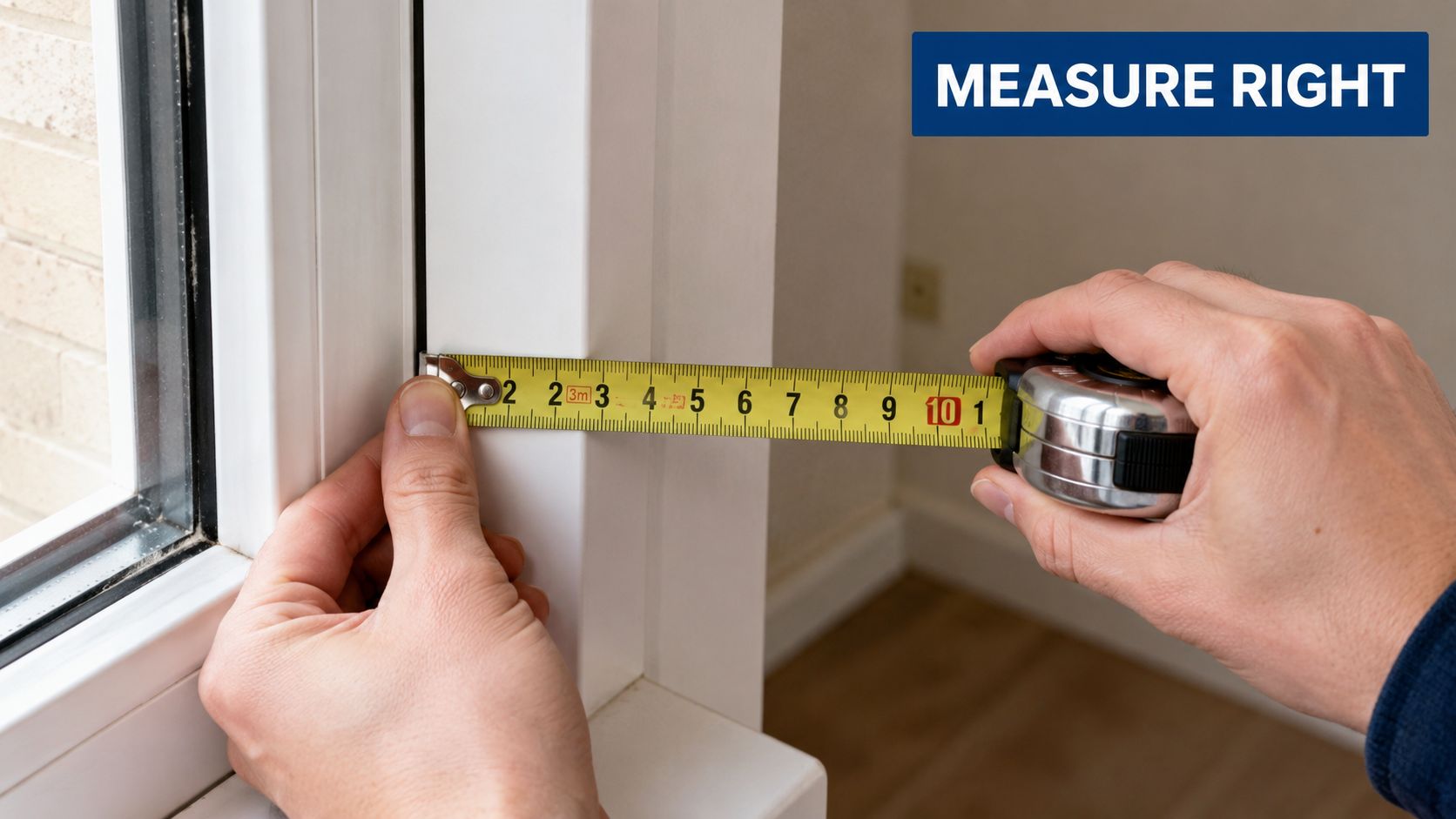

The only tape measure worth using here is a rigid steel tape. Fabric tapes flex. Cheap tapes with bent hooks introduce small errors. On made-to-measure work, small errors become fit problems.

Keep the setup simple:

• Steel tape measure: The blade stays straight across the reveal and gives a repeatable reading.
• Notepad and pen: Write the numbers down immediately. Don't trust memory between top, middle and bottom readings.
• Pencil sketch of the window: A rough drawing stops you mixing up left, centre and right dimensions.
• Step stool if needed: Reach safely. Don't lean out and guess the top reading.
• Cloth or brush: Dust, cobwebs and old sealant can hide the actual measuring edge.

If you're comparing products before ordering, it also helps to look at how the mounting method differs. For example, Magnetic fly screens for windows and Retractable fly screens for windows don't necessarily sit in exactly the same way, so you need to identify the true fixing area before you commit to a size.

Know the frame before you measure

People often say “window opening” when they mean three different things. That causes confusion fast.

Use these landmarks:

Part	What it is	Why it matters
Reveal	The recessed opening around the window	Often the usable mounting area
Cill	The projecting bottom section	Can reduce space for external fitting
Jambs	The vertical sides of the opening	These usually define the width limits
Head	The top of the opening	Important if the frame or screen cassette sits above the clear opening

Look closely before measuring. If there's sealant built up in one corner, a proud trim, a trickle vent, an alarm contact, or a bulky handle, note it now.

Clean the area first. Dirt on the frame doesn't just look untidy. It can hide the edge you need to measure from.

Pre-checks that prevent bad orders

Before you record a single number, do these checks:

1. Open and close the window fully so you know how the sash moves.
2. Check outside access if the screen mounts to the external face.
3. Look for handles or vents that may interfere with mesh or frame depth.
4. Sketch the window shape if it's part of a bay or grouped set.
5. Decide the fixing position first. Measuring without a mounting plan is how people end up remeasuring everything twice.

Practical measuring beats generic advice. Good results come from understanding the fitting surface, not from blindly following a single formula.

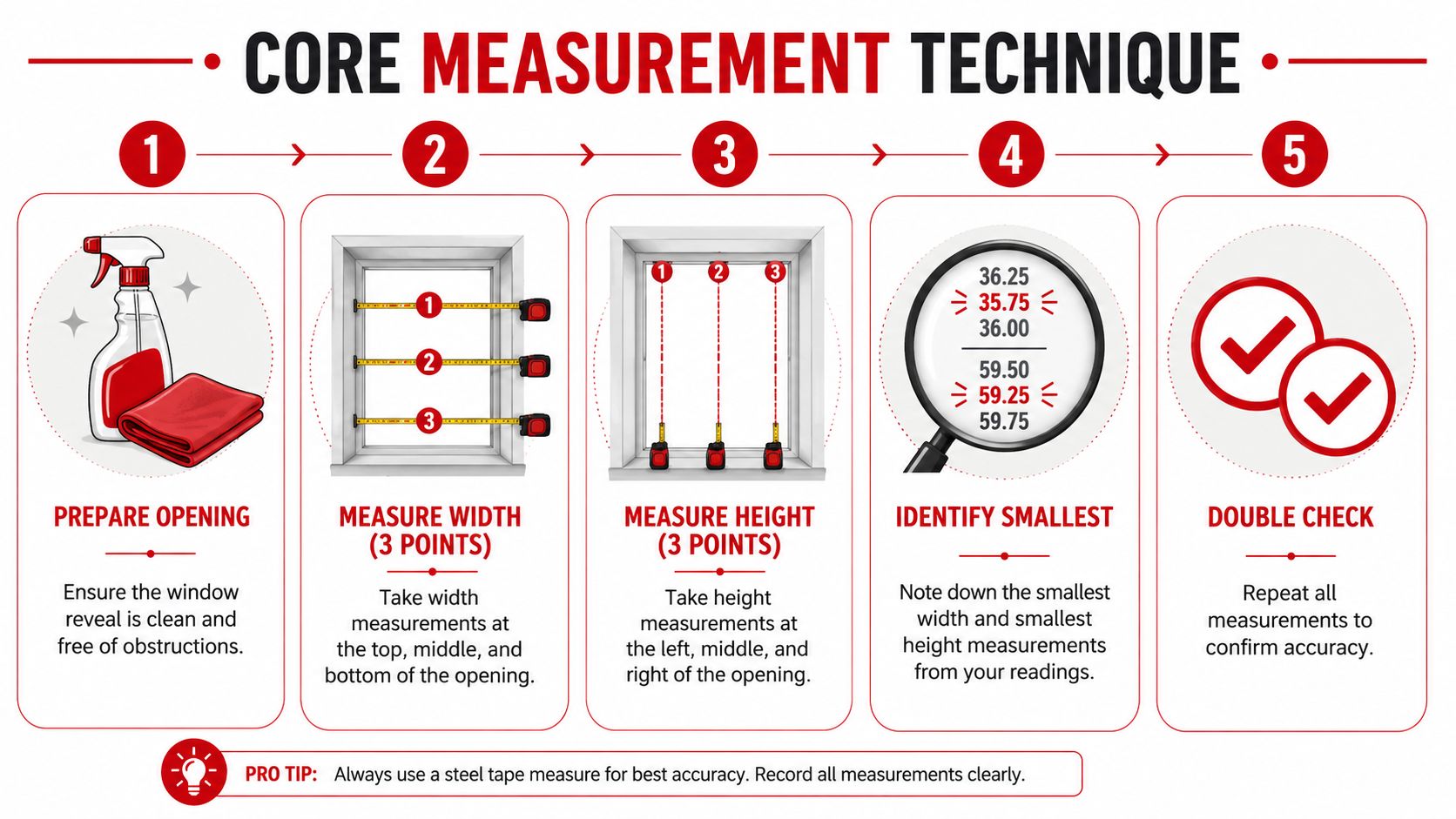

The Core Measurement Technique for Fly Screens

A replacement window can be ordered with fitting tolerances built in. An external fly screen often cannot. That is the mistake behind a lot of bad DIY orders. People use replacement-window logic, subtract a few millimetres out of habit, and end up with gaps, fouling hinges, or a frame that has nowhere solid to sit.

For fly screens, the job is to measure the actual fixing area and identify the tightest controlling point. The standard trade habit of taking three width readings and three height readings still applies, and it remains one of the soundest checks against bowed reveals, uneven plaster, and frames that look square until you put a tape on them. A practical guide to casement window sizes can help you sense-check your sketch, but it does not replace measuring the exact fixing area in front of you.

The three-point rule

Take six readings in millimetres:

1. Width at the top
2. Width at the middle
3. Width at the bottom
4. Height at the left
5. Height at the centre
6. Height at the right

Use the smallest width and the smallest height as your control measurements.

That sounds simple, but it is where rushed measuring goes wrong. One middle reading can miss a reveal that narrows at the head, a cill line that lifts slightly on one side, or a frame edge fattened by sealant. A fly screen has to clear all of that, especially if you are ordering a frame that sits on the outer face rather than inside the opening.

How to take the readings so they mean something

Keep the tape on the exact line where the screen frame will sit. If the product fixes to the face of the UPVC, measure that face. If it sits within a recess, measure the recess. Do not switch reference points halfway through the set.

A clean routine works:

• Measure all widths first on the same horizontal plane each time.
• Measure all heights second from the same top and bottom reference points.
• Write every figure straight onto your sketch before taking the next one.
• Repeat the full set once if anything looks out of line.

I tell fitters to slow down on the second pass, not the first. The repeat set is where you catch the common error of hooking the tape on a different edge, or measuring to the visible frame line instead of the actual fixing edge.

Why fly screen ordering differs from replacement window ordering

This is the part generic UPVC guides usually miss. Replacement windows are measured for a unit that will be packed, levelled, and sealed into an opening. Fly screens are often measured for a finished frame that must sit cleanly on a usable mounting surface, clear handles and vents, and still allow the sash to operate.

So do not apply a standard deduction unless the screen supplier gives one for that specific product.

For example, if you are ordering hinged fly screens for uPVC windows, the frame usually needs the true mounting size, plus confirmation that the hinge side, handle side, and outer frame face all have enough room. Subtracting “for safety” can leave you with light gaps around the mesh frame. Measuring only the clear opening can be just as bad if the screen fixes to the surrounding face.

Check for twist and out-of-square openings

After the six main readings, measure both diagonals. One from bottom left to top right, the other from bottom right to top left.

If those diagonal figures are noticeably different, treat the opening as out of square and stop assuming a standard rectangular frame will drop straight on. In practice, that can mean one corner seats tight while the opposite corner leaves a gap, or a hinged screen closes cleanly at one end and rubs at the other. That is not a manufacturing fault. It starts with the measurement.

What to submit for a fly screen order

Send the full set of six readings, note the smallest width and height, and include any obstruction that affects the fixing area. Handles, trickle vents, alarm contacts, proud sealant, and uneven cills all matter.

For external screens, the right question is not “what is the window size?” It is “what space does this screen have to fit and work in?” Get that right on paper and the fitting goes smoothly. Get it wrong by a few millimetres and you can waste the whole unit.

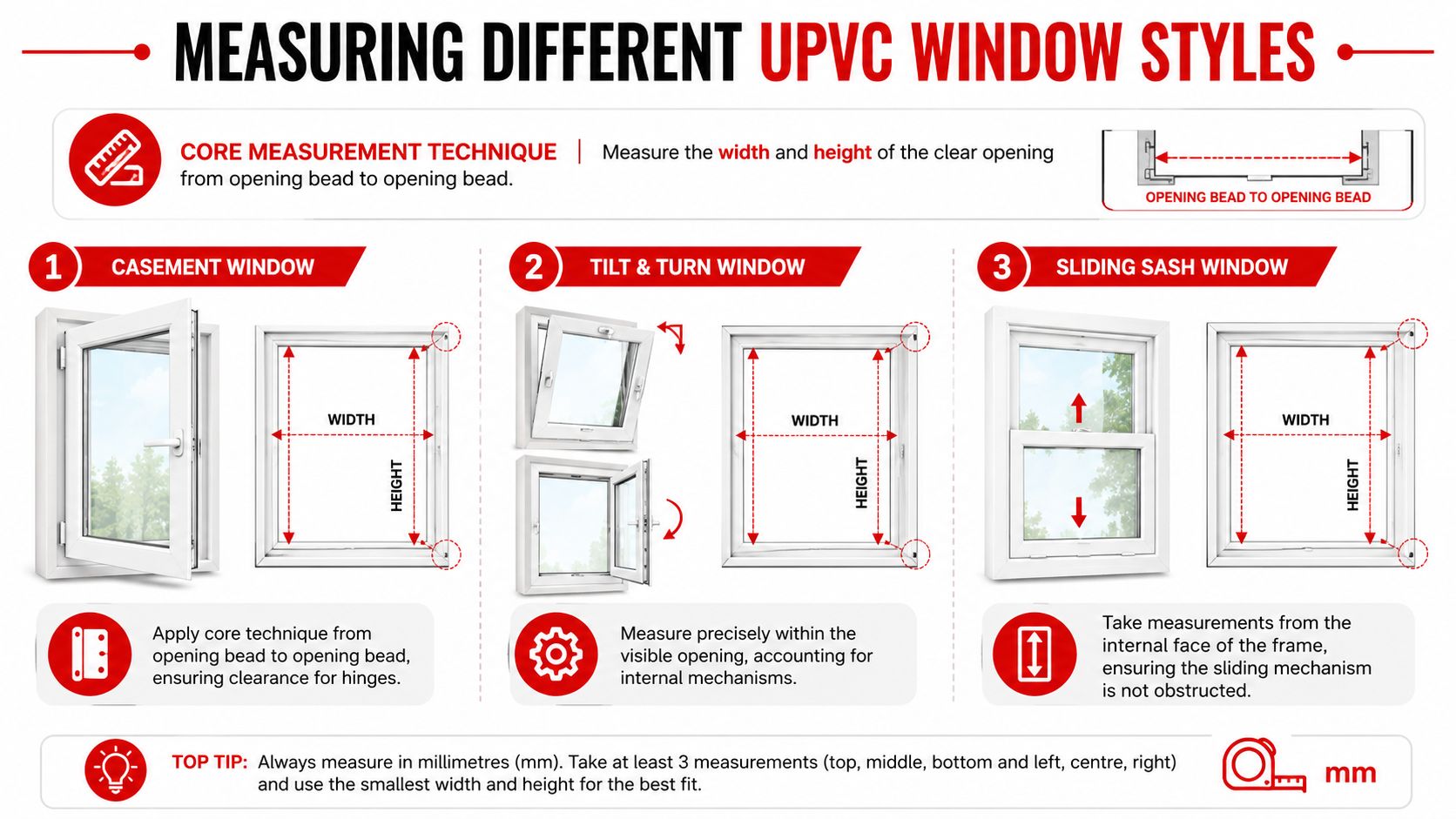

Measuring Different UPVC Window Styles

The core method stays the same, but the reference points change with the window style. That's where many DIY measurements drift off course. A casement doesn't present the same fixing reality as a tilt and turn, and a bay should never be treated as one giant opening.

There is one useful benchmark here. Over 90% of UK homes utilise windows within standardised dimensions, with common heights of 600mm, 1,050mm and 1,200mm, and popular widths of 630mm, 915mm and 1,200mm for residential casement windows, according to this overview of UK window sizes. Those numbers won't tell you what to order, but they can flag a reading that's obviously wrong.

If you want a broader frame of reference for typical opening proportions, this guide to casement window sizes is a useful companion when you're checking whether your rough sketch looks plausible.

Casement windows

These are the most straightforward, but they still catch people out.

Measure the opening or mounting area where the screen frame will sit, not the opening sash itself. The hinges on an outward-opening casement usually aren't the issue. The problem is more often uneven frame lines, trims, or a cill that steals space at the bottom.

For casements, focus on three things:

• The jamb-to-jamb width
• The head-to-cill height
• Any handle projection inward if the screen sits internally rather than externally

A common mistake is measuring the visible glass area. That gives you the size of the glazed portion, not the size of the area a screen frame must cover.

Tilt and turn windows

Tilt and turn units need more care because the hardware and movement happen inward. If the screen sits in a way that conflicts with the turning action, it won't matter that the raw size is accurate.

Use the same three-point method, but inspect the opening path first. Check where the sash travels in both tilt mode and full turn mode. Then confirm the proposed screen position stays clear of that movement.

On tilt and turn windows, a correct width and height can still be a wrong fit if the operating arc hasn't been checked.

This style also rewards a proper sketch. Mark the hinge side, the handle side and any protruding hardware. That makes later confirmation much easier, especially when the opening looks symmetrical at first glance but the mechanism doesn't behave symmetrically.

Sliding sash windows

Sliding sash windows create a different issue. The movement is vertical, and the usable fixing face can be narrower than expected.

Measure from fixing edges, not from decorative trim or stop beads that only appear to define the opening. Also check whether the screen will interfere with finger pulls, catches or the sash travel.

Here the practical trade-off is simple. The neater the fit, the more important it is to identify every protrusion before ordering. Sliding systems are less forgiving when a small handle or latch sits exactly where the frame wants to run.

Bay and bow windows

A bay is not one window for measuring purposes. Treat each panel as its own job.

That means:

1. Sketch each section separately.
2. Label the left return, centre face and right return.
3. Measure each opening independently using the same three-point method.
4. Note any angle changes that affect fixing or screen operation.

People get into trouble when they measure the centre panel accurately and assume the side panels will match. They often don't. The bay angle changes the visible frame lines and can make the fixing area narrower on one side than it appears from the room.

A grouped order can still look consistent, but the measurements should be panel specific.

Paired or multi-light UPVC windows

Some UPVC windows combine fixed panes with opening lights in one broader frame. Don't let the full unit size distract you. Measure only the area each screen will serve.

If you're fitting individual screens to separate openings, record them as separate pieces. If a product spans multiple lights, check that the mounting face is continuous and unobstructed all the way across.

For windows where a hinged option suits access better than a retractable or magnetic format, hinged fly screens for windows are one format to consider because the opening style can influence which screen design makes practical sense.

A quick comparison

Window style	Where people go wrong	What works
Casement	Measuring glass instead of fixing area	Measure the actual reveal or mounting face
Tilt and turn	Ignoring inward opening clearance	Check the sash path before finalising size
Sliding sash	Using decorative trim as reference	Measure from the true fixing edges
Bay or bow	Treating the whole bay as one opening	Measure each panel separately

Window style doesn't change the need for accuracy. It changes where accuracy has to be applied.

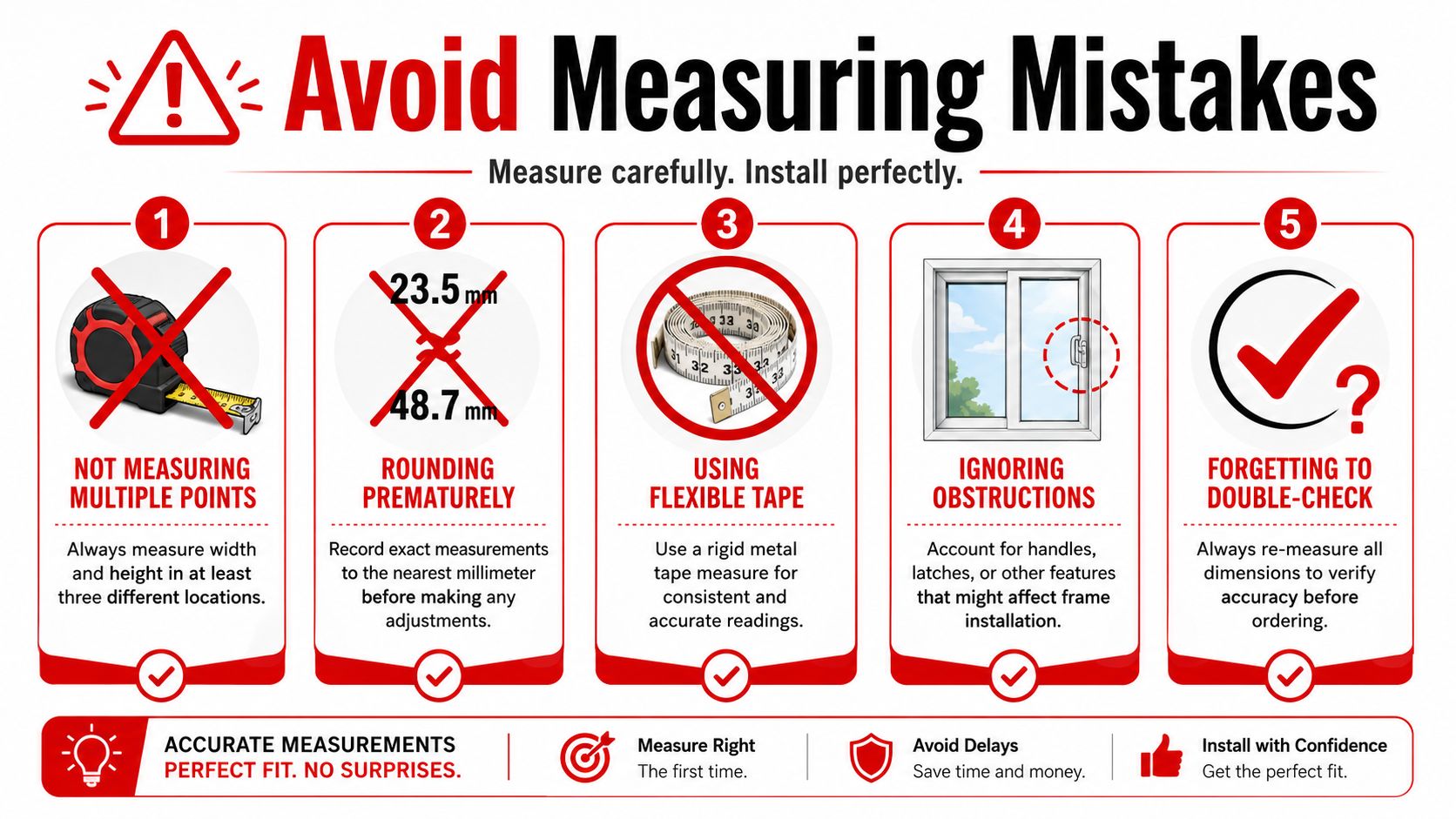

Common Measuring Mistakes and How to Avoid Them

Most bad fly screen orders come from confidence applied to the wrong method. The person measuring isn't careless. They're usually following advice meant for another product.

The biggest mistake is using replacement window logic for a screen order. Generic guides often tell people to deduct for fitting tolerance on a replacement frame. For made-to-measure screens, that can leave the finished unit undersized. A 2025 UK Home Improvement Forum survey found that 34% of users ordering made-to-measure screens provided window-replacement measurements, which resulted in screens that were too small to mount securely, especially on UPVC frames with varying cill depths, according to this guide page.

The errors that cause real trouble

Some mistakes show up immediately. Others only become obvious when you try to fit the screen.

• Deducting millimetres automatically: This is the classic error. If the product mounts externally or needs the true tightest size, a deduction builds the fault into the order.
• Measuring an old screen instead of the opening: Old screens can be bent, trimmed, badly fitted or the wrong size.
• Taking one width and one height only: Openings are often irregular, especially in older properties.
• Rounding early: “About 900” is not a measurement.
• Ignoring obstructions: Handles, vents, alarms and projecting cills all affect fit.
• Using the wrong reference edge: Measuring from trim instead of the actual mounting surface gives a tidy but useless number.

What works instead

Use a checking routine, not a memory test.

Mistake	Better habit
Single reading	Take the full three-point set
Rounded numbers	Write exact millimetres first
Guessing the mounting area	Decide the fixing position before measuring
No second pass	Re-measure the full window once more

The cleanest orders usually come from the people who slow down for five extra minutes and write more notes than they think they need.

Watch for hidden physical conflicts

Not every bad fit comes from width and height. Some come from depth, swing and clearance.

Check these before you order:

• Window handles: A handle can project into the path of the screen frame or mesh.
• Trickle vents: These may take away the top fixing area.
• Alarm contacts or sensors: Small parts can interfere with a flush frame.
• Deep or uneven cills: Bottom support can vary side to side.
• Sealant build-up: Extra material at a corner can reduce the usable space available.

This is also the point where it helps to keep the product type in mind. A magnetic frame, a hinged frame and a retractable cassette won't all tolerate the same obstructions in the same way. The tape measure only tells part of the story. The fitting position finishes the job.

FAQ From the Workshop Floor

The questions below usually come up after the first set of measurements, when the window starts showing its awkward details.

What if the opening isn't square

Check both diagonals, corner to corner.

If the two diagonal readings differ, the opening is out of square. For a replacement window, that can sometimes be absorbed in the fitting process. For an external fly screen, it matters straight away because the screen frame has to sit cleanly on the fixing surface. Write the diagonal readings on your sketch and work from the tightest controlling point, not the widest part you can find.

Do I measure from inside or outside

Measure from the side where the screen will fix.

A common source of errors in DIY orders. Replacement-window guides often focus on the structural opening. Fly screens do not always use that reference point. If the screen is mounting to the face of the UPVC frame, measure that face. If it is going into the reveal, measure the reveal. Same window. Different product. Different measuring logic.

Should I allow for handles or catches

Yes. Every time.

A projecting handle can stop a frame sitting flat or block the mesh when the screen closes against the window. Mark the handle position on the sketch and note how far it projects. If clearance is tight, check the available insect mesh materials and screen options before ordering, because frame profile and mesh choice can affect what will fit cleanly.

What's the difference between reveal fit and face fit

A reveal fit sits inside the recessed opening. A face fit fixes onto the front surface around that opening.

Reveal fit usually gives a tidier finish, but only if the sides are straight, the corners are usable, and there is enough depth for the screen frame. Face fit gives more room to work with when the reveal is uneven or cluttered with vents, sensors, sealant, or hardware. I use face fit more often than people expect, because real windows are rarely as clean as the brochure version.

Do door screens follow the same measuring logic

The habit you want is the same. Measure the actual fixing area, check for square, and record obstructions.

The details change. Doors bring threshold levels, traffic direction, closer clearance, and heavier use. A method that works on a small bathroom window can fail badly on a back door if you ignore swing path or bottom clearance.

Is there ever a case for guessing based on standard sizes

No.

Standard sizes are only a rough sense check. They help spot a number that looks obviously wrong, but they do not tell you what your frame, reveal, or fixing face is doing on that specific opening.
