Master Cuts with a Miter Box Large: Pro Guide 2026

You're probably here because a cut went wrong on a piece you didn't want to replace. Maybe it was a white UPVC trim that chipped on the visible face, or an aluminium frame section that looked square in the box but opened up at the corner the moment you offered it up. That's the point where a standard mitre box stops feeling like a simple hand tool and starts feeling like the reason the job is running late.

Cutting timber is forgiving. Cutting coated aluminium, hollow UPVC, and light frame sections for screen work isn't. These materials show every mistake. The wrong box lets the piece move. The wrong saw tears the edge. Too much pressure collapses a hollow section before you've even reached the far wall of the profile. If you want clean, repeatable corners for custom frames, especially fly screen frames and similar non-wood assemblies, the answer isn't brute force. It's choosing a large mitre box properly and using it with the right setup.

Why Your Standard Miter Box Fails on Large Frames

You notice the problem at assembly, not at the cut. The aluminium screen frame looked square in the box, but once both 45s meet, one corner shows daylight and the opposite side pulls out of line. On UPVC, the corner may close, but the visible face is chipped or slightly crushed. That is how a standard mitre box wastes material. It gives just enough guidance to look accurate while the profile is still moving.

Small mitre boxes were built around short timber trim. Large frame sections for fly screens and similar custom work ask for something different. These profiles are often hollow, thin-walled, and finished on the face you see. They do not forgive blade grab, side pressure, or a box that flexes under your hand.

The main fault is poor control.

A timber offcut usually sits flat, resists twist, and gives the saw a steady kerf to follow. Aluminium and UPVC do not behave that way. The front edge can skate the blade, the cavity changes resistance halfway through the cut, and the section can roll slightly inside the box even when it seems seated. A cut can look clean on the top face and still be out enough to open the joint once the frame is screwed or corner-keyed together.

I see this most often on wider insect-screen profiles and door-screen frame parts. Jobs around openings such as retractable insect screens for double doors make the error more obvious because longer spans magnify a small inaccuracy at each corner.

Why non-wood profiles show every weakness

Wood fibres give a hand saw some natural purchase. Powder-coated aluminium does not. UPVC can start cleanly, then break out on the exit side if the profile is unsupported. Hollow sections add another problem. Clamp too hard and you deform the wall. Hold too lightly and the piece shifts during the stroke.

The result is familiar on site. One mitre is half a degree out. The opposite cut matches that error. The frame still refuses to come up square because the profile moved differently on each pass.

Standard boxes usually fail for three practical reasons:

• They do not support the full profile. Taller or wider sections rock on the base or sit against one wall only.
• The body flexes under load. That changes the relationship between the saw slots and the workpiece.
• They give you no safe way to restrain thin-walled material. Hand pressure is inconsistent, and inconsistent pressure ruins mitres.

The angle slot is rarely the whole story. The core issue is that the box, the blade, and the profile are not working as one controlled setup. That is why a box that feels fine on pine trim turns into a liability on aluminium and UPVC frame stock.

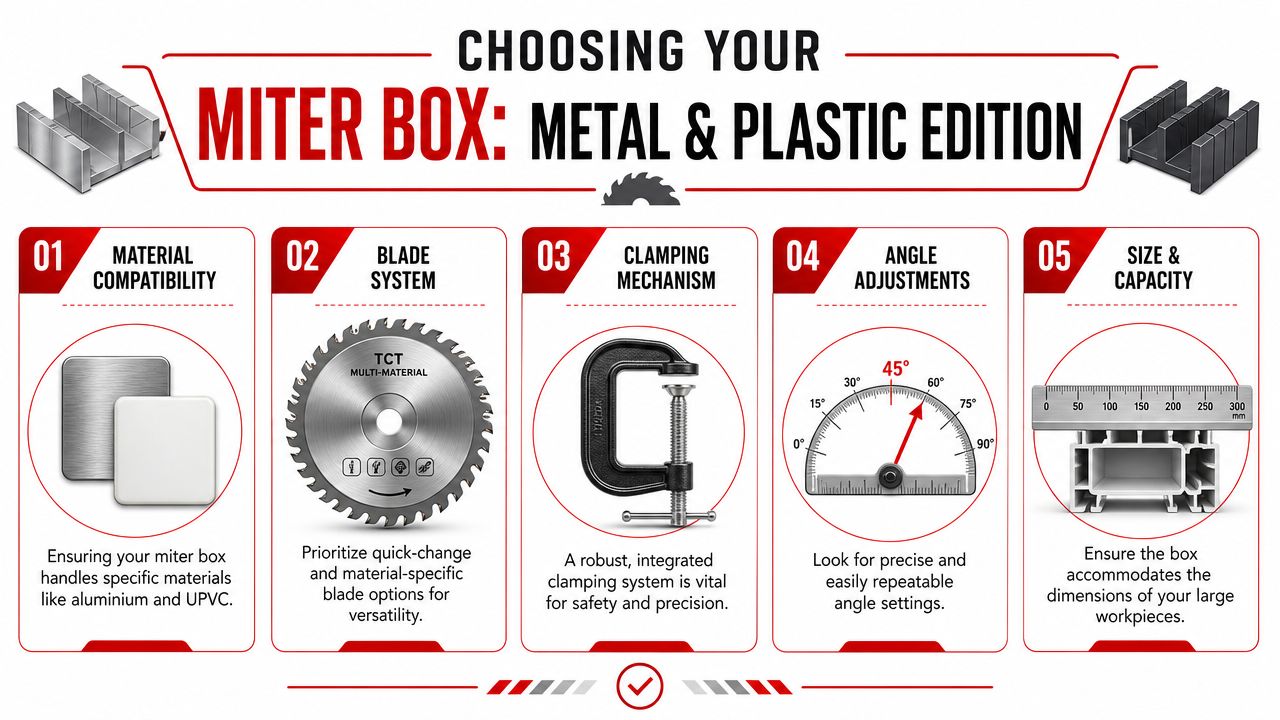

How to Select a Large Miter Box for Metal and Plastic

You feel the problem as soon as the stock goes in the box. A wide aluminium profile rocks on the base. A hollow UPVC section sits high on one edge. Then the saw starts, the piece shifts half a millimetre, and the corner is already lost. That is the point to stop blaming your hand skills and choose a box that suits frame work.

Start with internal capacity

For aluminium and UPVC, a large mitre box earns its keep by supporting the profile properly. Check the inside dimensions, not the overall size of the tool. The section needs to sit flat against the base and side wall without tipping, twisting, or hanging so far out that the cut starts unsupported.

This matters most on custom frame stock. The slim extrusions used on magnetic fly screen frame kits and similar assemblies can look easy to cut, but they move more than timber if the box does not hold them square from the first stroke.

A box can be physically large and still be wrong for the job. Low side walls, poor slot alignment, or a narrow base will still let the work move.

Check rigidity before angle options

Many buyers get distracted by multi-angle markings. I look at stiffness first.

If the body flexes under hand pressure, the slots stop guiding accurately. That shows up fast on powder-coated aluminium because the saw will skate at the start and drift once it enters the hollow section. On UPVC, flex usually shows up as a cut that looks clean from above but opens at the back edge when you test the joint.

Good selection usually comes down to three practical questions:

• Does the box stay flat on the bench? A box that rocks before the cut starts will not produce matching mitres.
• Are the guide slots straight, clean, and deep enough to control a rigid-backed saw? Shallow or worn slots let the blade wander.
• Can the box be fixed down securely? If you cannot clamp or screw it to the bench, accuracy depends too much on hand pressure.

What to buy for occasional work and repeat work

For occasional trimming of light plastic section, a reinforced plastic box can be serviceable if the profile fits well and the slots are clean. I would not use that type for repeat aluminium frame work unless the sections are very small.

For regular fabrication, a heavier-bodied box is the safer choice. More mass helps the tool stay put, and a stiffer body keeps the angle consistent across multiple cuts. That saves time later because you are fitting parts together, not filing corners to hide small errors.

If you cut oversize frame members, look for a model with enough width and wall height to control taller sections without forcing the saw to ride high in the slot. That is where many cheap large boxes still fall short. They are long enough, but not supportive enough.

Large Miter Box Feature Comparison

Feature	What to Look For	Why It Matters for Aluminium/UPVC
Box material	Metal or heavily reinforced body	Reduces flex while sawing and keeps angle slots consistent
Internal capacity	Enough room for the full profile to sit flat and supported	Prevents rocking and twist on wide or tall sections
Angle guides	Clean, repeatable 45°, 90°, and useful intermediate positions	Helps paired cuts meet cleanly on frame corners
Clamping compatibility	Flat base and side access for clamps or soft packing blocks	Holds hollow sections still without deforming them
Bench fixing	Easy to screw or clamp down firmly	Stops the whole box moving during the stroke
Slot quality	Tight, unworn guides suited to a rigid saw	Limits blade wander on coated or brittle surfaces

What matters most on real jobs

Material choice changes the result. Lightweight plastic boxes are fine for very light duty, but they wear faster and give less support once you start cutting coated aluminium or broader UPVC profiles. A heavier box feels steadier immediately. The saw enters cleaner, tracks better, and produces corners that need less correction.

Angle range still matters, just after rigidity and fit. Most frame work only needs accurate 45° and 90° cuts, with the occasional 22.5° on trims or returns. Extra angle positions are useful only if the indexing is repeatable. A loose adjustable feature is worse than a fixed box with true slots.

Buying rule: if the profile can shift, lift, or deform during setup, choose a better-supported box.

A quick selection checklist

Before buying, check these points in order:

• Match the box to your largest profile, using the internal dimensions.
• Press on the walls and base. Any noticeable flex is a warning sign.
• Inspect the slot finish. Rough or oversized guides reduce control.
• Check how you will fix it to the bench before you buy it.
• Make sure the side wall height suits the depth of your sections.
• Buy for repeat accuracy, not just first use. A cheaper box that wears quickly costs more in wasted stock.

Pairing Your Box with the Correct Blade and Clamps

A large mitre box only controls the angle. Surface finish, cut accuracy, and how much cleanup you face afterwards depend heavily on the saw and how the profile is held.

That matters even more with aluminium and UPVC frame sections than it does with timber. These profiles are often thin-walled, hollow, coated, or slightly brittle at the edges. A poor blade can grab the front lip, burr the exit edge, or wander once it reaches the empty centre of the section.

Why the saw matters more than people expect

In my experience, people often blame the mitre box for cuts that were lost by the blade in the first few strokes. If the saw plate flexes, the slots cannot keep the cut perfectly true, especially on wider aluminium and UPVC profiles where resistance changes partway through.

Use a rigid-backed saw with fine teeth. That combination gives better control at the tooth line and a cleaner finish on visible frame edges. A coarse wood saw is usually the wrong choice here. It cuts too aggressively, chips UPVC, and leaves aluminium needing extra deburring before assembly.

For custom frame work, slower is cheaper.

Blade and clamp priorities

Set up in this order:

• Start with a stiff-backed saw so the blade tracks with the box instead of bending under hand pressure.
• Choose a fine tooth count for thin-walled aluminium and UPVC, where a rough entry or exit shows up immediately at the corner.
• Clamp the box to the bench first so the guide stays fixed throughout the stroke.
• Support the profile with packing blocks so clamp pressure spreads across the outside faces instead of crushing one point.
• Stabilise the long side of the stock if it wants to twist or bounce while you cut.

This is the difference between a mitre that closes off the saw and one that needs filing, packing, or replacing.

Clamping without crushing the profile

A common mistake is to treat hollow sections like solid timber. They are not. Tighten a clamp directly onto a light aluminium or UPVC frame member and it can ovalise, dent, or close slightly at the face. The cut may look square in the box, then open up when you join the corners.

Use scrap timber, plastic packing, or another flat sacrificial piece between the clamp and the profile. That spreads the load and keeps the outer faces in shape. Clamp firmly enough to stop chatter, then check by hand. If the section still ticks or shifts when tapped, it is not secure enough.

Long, narrow stock needs support beyond the cut line too. The offcut side can twist the piece as the saw breaks through, which is one reason light frame sections for magnetic fly screen kits so often end up a fraction out at the corner. Support both sides, keep the pressure even, and the box can do its job properly.

The Professional Technique for Cutting Aluminium and UPVC

You measure a fly screen frame twice, cut once, and the corner still opens up when you bring the pieces together. In my experience, that usually comes from the cutting method, not the measurement. Aluminium and UPVC profiles punish small errors. A saw that drifts by a fraction, or an exit edge that breaks away, is enough to spoil the joint.

Marking and seating the profile correctly

Start with a mark you can cut to. On powder-coated aluminium and glossy UPVC, a thick pencil line is too vague. Use a sharp pencil, a knife line where the finish allows it, or a fine marker that stays tight to the measurement. Mark the waste side clearly so you are not guessing once the profile is in the box.

Orientation matters more on hollow frame sections than it does on timber. Keep the show face in the same position for every matching length, especially on custom frame work and pieces that need to align cleanly with commercial heavy-duty insect screen doors. If the profile has a deeper wall on one side, seat it the same way every time. That keeps any slight saw bias consistent across all four corners.

Before you cut, check the seating surface inside the box. One sliver of swarf under aluminium or one chipped fragment of UPVC under the profile can tilt the work enough to open the mitre later.

Starting the cut without skating

The first few strokes set the path. On aluminium and UPVC, the blade will skate across the face if you drop straight into a full stroke. Place the teeth on the waste side of the line, use a light pull stroke to nick a shallow track, then begin cutting with controlled forward strokes.

Keep the stroke long enough to use the blade properly. Short strokes wear one section of the teeth, build vibration, and leave a rougher face. The cut should sound even. If it starts rattling, scraping harshly, or grabbing, stop and check the setup before you carry on.

Gloves help when you are handling cut metal sections and fresh burrs. For general guidance on hand protection, Refinery Work Wear Canada safety solutions gives a useful overview of cut-resistant glove types.

Keeping the cut square through the full section

Aluminium and UPVC both change feel as the blade moves through the section. The blade enters the first wall, drops into the hollow, then meets the far wall. That change in resistance is where many cuts wander. The fix is simple. Do not add force when the resistance changes. Let the box control the angle and keep your hand pressure straight through the stroke.

Watch the blade, not just the line. If the reflection on the plate starts to roll, you are twisting the saw. If the profile starts buzzing, something is loose or unsupported. If the teeth clog with plastic dust or metal swarf, clear them before the cut quality drops.

I also slow down for the last 10 to 15mm. That is where thin aluminium burrs heavily and UPVC likes to chip at the exit corner.

Finishing the cut properly

The last part of the cut needs less pressure than the first. Support the offcut with one hand if it is safe to do so, or with a stand or block if the piece is awkward. Then let the blade pass through the far wall without punching out the corner.

Check the face straight away:

• The visible edge should stay crisp
• The profile should not show crushing or flare
• Aluminium should have only a light burr
• The two mating cuts should close without forcing

If aluminium leaves a small burr, remove it with a fine file or deburring tool and keep the tool flat. A few careless strokes can change the angle enough to throw the corner out. On UPVC, avoid heavy cleanup altogether. If the cut chipped, the usual cause is too much pressure or the wrong blade, not a lack of sanding.

Avoiding Common Miter Box Cutting Errors

A bad mitre usually starts long before assembly. You cut four pieces, offer up the first corner, and one side sits proud or a gap opens at the face. On aluminium and UPVC frame sections, that usually points to a repeatable setup fault, not random hand error.

The useful question is simple. What does the failed cut look like?

When the corners don't close

Start by checking where the gap sits. A gap at the front face usually means the cut has wandered off square through the profile depth. A gap at the inside edge often means the section was not sitting flat in the box, especially with hollow fly screen frame stock or trims with rounded backs.

I see one expensive mistake repeatedly. Installers try to correct a bad joint with filing before they prove the saw setup on scrap. That often rounds the edge, changes the angle again, and wastes a second length.

Use a quick diagnosis:

• Gap opens at the visible outer corner. The blade likely drifted during the stroke, or the profile shifted under clamp pressure.
• Gap opens at the inner corner. The section was tilted, riding on a rib, gasket track, or debris in the base of the box.
• One leg of the frame rocks after assembly. One or more cuts are not square across the face, even if the 45 degree angle looks close.
• Two pieces meet only if you twist them by hand. The profile has been slightly crushed, usually by over-clamping thin-wall UPVC.

When UPVC chips or aluminium leaves a heavy burr

The surface finish tells you a lot. Clean entry and ragged exit usually means the offcut was unsupported at the end. Chipping on the visible face of UPVC points to an aggressive start, a coarse tooth pattern, or a profile that was vibrating in the box. Heavy burrs on aluminium often come from forcing the cut after the blade starts binding.

Material behavior matters here. UPVC tends to fracture at corners. Thin aluminium tends to smear and raise a burr if the blade rubs instead of cutting cleanly. Treat them the same and one of them will punish you.

Use this fault-finding list:

• Chipped visible face. Start pressure was too hard, or the profile was free to chatter.
• Burr rolled over the far edge. The final strokes were too heavy, or the offcut dropped before the blade cleared the wall.
• Saw marks look polished rather than cleanly cut. The blade is rubbing and loading up, not slicing.
• Profile crushed under the clamp. Clamping force is too concentrated on a hollow section without a packing block.

Safety matters as much as accuracy. Fresh-cut aluminium edges are sharp enough to open a finger quickly. If you handle these profiles regularly, the guide to Refinery Work Wear Canada safety solutions is a useful reference for choosing cut-resistant gloves that suit this kind of work.

The check I use before wasting another full length

Cut a short scrap in the same orientation as the job piece. Then mate it to another known-good offcut or hold two fresh test cuts together and inspect both faces, not just the top edge. If the top closes but the bottom shows daylight, the problem is squareness through the depth of the section. If both faces miss by the same amount, the profile position in the box is the first thing to correct.

Change one variable at a time. Re-seat the profile. Re-clamp it. Clear the base. Then test again.

That approach saves stock, especially on custom aluminium and UPVC frame parts where a small error repeats across every corner.

Keeping Your Miter Box and Blades in Top Condition

A large mitre box stays accurate only if you treat it like a precision guide, not a storage tray for swarf and offcuts. Aluminium filings, plastic dust, and burr fragments build up in the base and side walls, and that tiny debris can stop a profile sitting flat.

A simple maintenance routine is enough:

• Brush out swarf after every session. Packed debris under the workpiece changes the cut angle.
• Check the 45° and 90° slots for wear. If the saw starts to rock in the slot, accuracy will drop even if your technique is sound.
• Wipe the base and walls clean. Plastic residue and fine metal dust can make profiles slip rather than seat firmly.
• Clean the blade teeth. Built-up residue increases drag and heats the cut.
• Protect steel parts lightly. A small amount of oil helps prevent rust on the saw and any bare metal surfaces.
• Store the box where it won't warp or get knocked. A damaged guide edge ruins repeatability.

A mitre box doesn't gradually become inaccurate by itself. Dirt, wear, and rough handling make it inaccurate.

If you rely on the same setup for repeated frame work, test the box periodically with a scrap pair of mirrored cuts. That takes only a moment and tells you whether the guide, saw, and clamping routine are still working together as they should.

---

If you're cutting frame sections for insect screening, replacement trims, or made-to-measure openings and would rather start with properly built screening products than fabricate every element from scratch, Premier Screens Ltd supplies bespoke fly screens and aluminium-framed screening options for homes and commercial settings across the UK.
