What Does Recess Dimensions Mean? Measure Right
You open the window for ten minutes of fresh air, and the room fills with everything you didn’t invite. Flies drift towards the kitchen. A wasp circles the light. By evening, you’re choosing between stuffy rooms and insects.
That’s why made-to-measure fly screens matter. But the screen itself isn’t the first decision. The measurement is. If the opening is measured badly, even a well-made screen can sit twisted, leave a gap, catch on a handle, or fail to seal properly.
When people ask what does recess dimensions mean, they’re usually expecting a short definition. In practice, it means the set of measurements that decide whether your screen fits neatly inside the opening, whether it needs to mount on the face of the frame instead, and whether it will give you the bug-free finish you want. Get those dimensions right and everything else gets easier. Get them wrong and you’re chasing problems after the screen arrives.
A proper recess measurement isn’t just about width and height. It’s about understanding the opening as a working space. You need to know where the frame narrows, where the depth disappears, and what’s sitting inside that recess that could interfere with the product.
The Secret to a Perfect Bug-Free Home
The best fly screen jobs always start the same way. Someone wants airflow without compromise. They want to keep the window open on warm days, cool the room down naturally, and stop insects getting in. That part is simple.
The hard part is making the screen fit the opening it’s going into.
Recess dimensions are the internal measurements of the opening itself. On a window, that usually means the inside width, inside height, and available depth from the front edge of the recess back to any obstruction. Those three measurements decide whether a screen can sit inside the opening cleanly, whether it will seal around the edge, and whether the hardware has enough space to operate.
Most measuring mistakes happen because people treat the opening as if it’s perfectly square and clear. A lot of UK windows aren’t. Timber frames can move over time. UPVC openings can be shallow. Handles, vents, alarm sensors, and trim pieces often steal the space you thought you had.
A bug-free result doesn’t come from ordering a screen. It comes from ordering the right screen for the exact opening in front of you.
That’s why recess dimensions are the most important step of the whole job. They affect appearance, airflow, ease of fitting, and the quality of the seal. If you want a screen that looks tidy and works properly every day, this is the skill worth getting right.

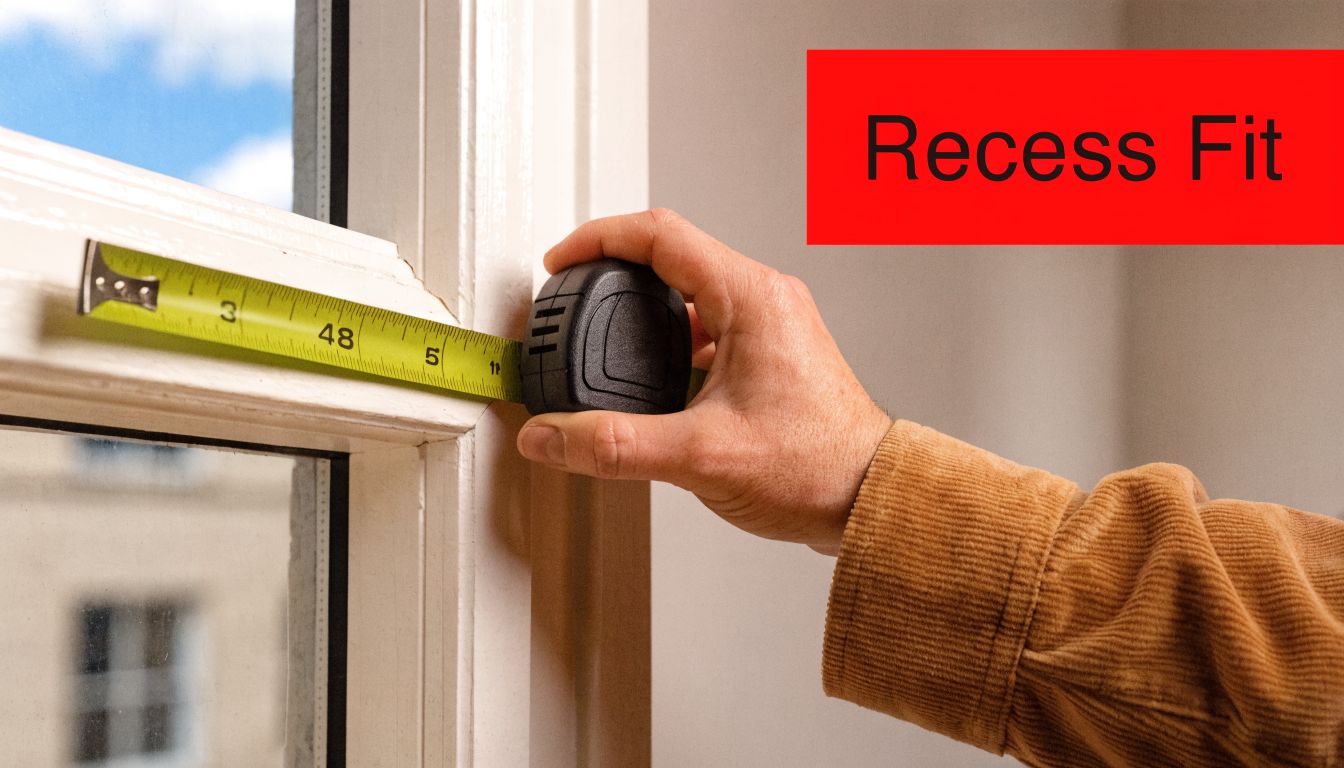

Recess Fit Versus Face Fit Explained
When people ask what does recess dimensions mean, they’re often really asking a more practical question. Is the screen going inside the opening, or on top of it?
That’s the difference between recess fit and face fit.
A recess fit sits inside the opening, like a picture placed neatly within a frame. A face fit sits onto the outer frame or surrounding surface, like a picture mounted over the front. Neither method is automatically better. The right choice depends on the opening, the available depth, and how clean a seal you need around the edge.
What recess dimensions actually refer to
Recess dimensions are the measurements taken inside the opening. They’re not the overall size of the window unit, and they’re not the visible glass size. They’re the usable internal space where a product might sit.
British Woodworking Federation standards note that accurate recess dimensioning is critical, and that 68% of window fitting complaints in UK homes stem from mismatched recess sizes, with gaps averaging 5-10mm that allow insect entry. In fly screen terms, that gap is the difference between a proper barrier and a screen that looks fitted but still lets insects in.
Recess Fit vs Face Fit at a Glance
| Attribute | Recess Fit (Inside the Opening) | Face Fit (On the Frame/Wall) |
|---|---|---|
| Appearance | Sits neatly within the opening for a built-in look | More visible, but can cover awkward openings |
| Seal quality | Usually very tidy when the recess is square and clear | Can work well when internal surfaces are uneven |
| Space needed | Needs enough internal width, height, and depth | Useful when depth is limited inside the recess |
| Obstruction risk | More likely to clash with handles, vents, or sensors | Better for openings with internal obstacles |
| Installation feel | Clean finish when measurements are precise | More forgiving on older or irregular frames |
| Best use | Openings with consistent internal dimensions | Shallow, obstructed, or difficult recesses |
What works in practice
A recess fit usually gives the smarter look. It feels built into the window rather than added afterwards. It can also create a very crisp edge-to-edge barrier if the frame is square and there’s enough depth for the chosen product.
A face fit earns its place when the opening won’t cooperate. If the recess is shallow, tapered, or interrupted by hardware, mounting to the face can save a lot of trouble. It also gives you a way around uneven internal surfaces that would otherwise leave tiny gaps.
Practical rule: Choose the fit style after measuring the opening, not before. Deciding first and measuring second is how bad orders happen.

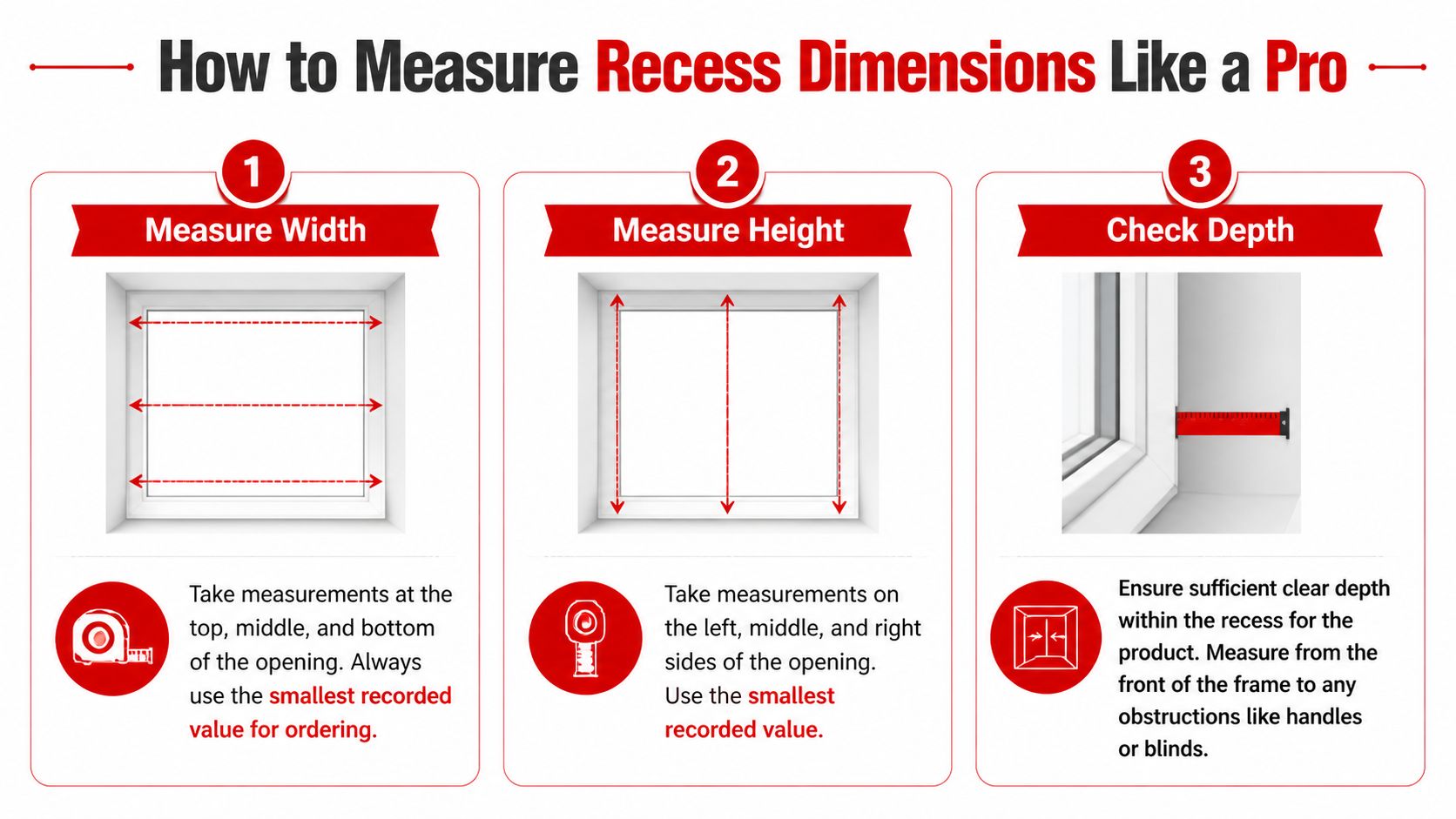

How to Measure Recess Dimensions Like a Pro
A good measurement starts with the right tool. Use a metal tape measure, not a cloth tape and not a folding rule that won’t sit properly in the opening. You want firm, repeatable readings.
Then measure the opening in three parts: width, height, and depth. For width and height, always measure in more than one place. Openings often vary slightly from one side to the other, especially in older homes.
Measure the width properly
Take the internal width in three places:
- Top of the recess
- Middle of the recess
- Bottom of the recess
Write all three down. Use the smallest measurement as your working width. That protects you against frames that tighten slightly at one point. If you order to the largest width, the screen may bind or fail to sit flat.
For anyone measuring several windows in one property, the same discipline used in creating precise room layouts helps here too. Record each opening clearly, room by room, and don’t trust memory once you’ve measured more than one frame.
Measure the height the same way
Now take the internal height in three places:
- Left side
- Centre
- Right side
Again, note all three and work from the smallest figure. This is the safest approach because the screen must fit the tightest point of the opening, not the most generous one.
If the difference between the readings is obvious, don’t ignore it. That tells you the opening may be out of square or slightly tapered. It can still be workable, but only if you measure with that reality in mind.
Check depth before you choose the product
Depth is where many people come unstuck. Width and height tell you the size of the opening. Depth tells you whether the product can physically live there.
Measure from the front inside edge of the recess back to the first thing that interrupts the space. That might be:
- A window handle
- A trickle vent
- An alarm contact
- A bead, trim, or hinge point
- An existing blind fixing
The key is to measure the clear usable depth, not the deepest part you can find somewhere in the corner.
If the cassette, frame, or channel needs a flat run and the obstruction sits in that path, the recess isn’t as deep as it looks.
The small habits that prevent big mistakes
A few trade habits make a real difference:
- Keep the tape straight: A bowed tape gives a false reading.
- Measure to the same reference points: Don’t switch between plaster, trim, and frame edges.
- Write dimensions immediately: Don’t rely on a mental note between rooms.
- Double-check awkward openings: If something looks odd, measure again from another angle.
- Read the tape at eye level: Looking from above or below can shift the mark slightly.
BS EN 14351-1 requires recess width tolerances not to exceed ±2mm, noted in the verified data above. In practical terms, that means guessing isn’t close enough. On a made-to-measure screen, a couple of millimetres can decide whether the frame sits snugly or leaves a visible route for insects.

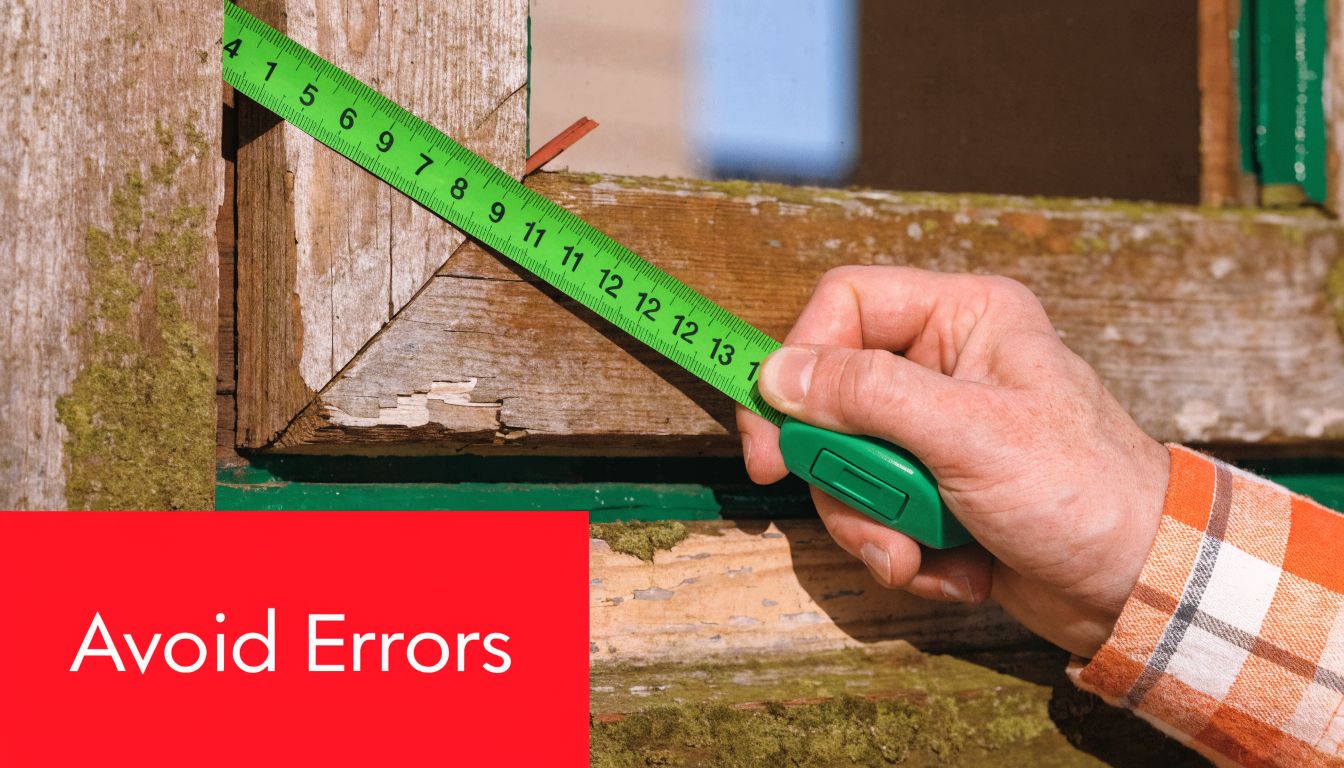

Common Measuring Mistakes and How to Avoid Them
People often assume measuring a window is straightforward. On a perfectly square, empty opening, it is. Real homes are less polite than that.
The awkward jobs are usually the ones that look simple from across the room. You only spot the issue when the tape goes into the recess and you realise one side pinches, the top leans, or the handle projects further than expected.
Shallow recesses catch people out
A common UK problem is the shallow UPVC recess. This guide notes that modern UPVC windows are often under 70mm deep, and that obstructions such as tilt-turn handles can reduce effective depth by 20-30mm. That’s exactly the kind of detail that changes a straightforward recess-fit plan into a face-fit or alternative mounting decision.
The mistake isn’t just failing to measure depth. It’s measuring the deepest point and assuming the whole recess is available. It rarely is.
Older frames aren’t always square
Timber frames can move over time. Even newer openings can vary slightly from top to bottom. If your top width is different from your bottom width, the opening isn’t perfectly parallel.
What works is simple:
- Use the smallest width and smallest height: This protects against the tightest point.
- Check both diagonals if the opening looks off: If the diagonals differ, the frame is likely out of square.
- Look for bowed surfaces: A frame can be the right size on paper and still be uneven where the screen needs to seat.
Reading errors are more common than people think
I’ve seen plenty of avoidable mistakes caused by the tape measure rather than the frame. A metal tape hooked loosely onto a rounded edge can slip. Reading a mark while standing to one side can shift the line by enough to matter. Swapping millimetres and centimetres when writing notes is another classic.
Don’t rush the last few millimetres. That’s where fit problems usually begin.
A simple checklist helps:
- Hook the tape firmly against the same edge each time.
- Read the scale straight on, not at an angle.
- Label every note with room and window position.
- Measure awkward openings twice, especially if a handle or vent sits nearby.
If a reading feels uncertain, treat it as uncertain. Re-measuring takes minutes. Reordering takes much longer.
Matching Your Measurements to Premier Screens Products
Measurements only become useful when they lead you to the right product type. The same opening can suit one style perfectly and make another a poor choice.
That’s why width, height, and depth should always be read together. A window might have plenty of width and height but still be unsuitable for a cassette-based option if the recess depth is interrupted by hardware. A doorway might look generous until you account for swing clearance, threshold detail, or traffic flow.
What suits domestic windows and doors
On a straightforward window opening, a retractable or sliding style usually needs enough clean internal space for the frame and moving parts to sit without fouling the handle or vent. If the recess is tight, a magnetic or face-mounted solution can sometimes make more sense because it asks less from the opening.
For doors, the questions change slightly. You’re no longer just checking whether the frame fits. You’re checking whether the screen can operate naturally with the way people use the doorway. A hinged option needs room to open without clashing. A retractable option needs a sensible mounting position and clean side clearances.
Where measurements matter most in commercial settings
Commercial openings are less forgiving because compliance and daily wear both matter. A door that’s measured casually might not just fit badly. It may also compromise access, cleaning, or airflow.
That’s especially relevant in food preparation environments. Current guidance trends indicate that new stainless steel mesh doors for commercial kitchens may require recess depths of 70mm or more to maintain minimum airflow of 0.5m/s without insect ingress. When you’re measuring for that kind of setting, depth stops being a convenience issue and becomes part of whether the opening can support the right specification.
The practical matching process
A sensible way to translate measurements into product choice is to ask three questions:
| Question | Why it matters |
|---|---|
| Is the opening deep enough for an inside fit? | This decides whether the product can sit neatly within the recess or needs face mounting |
| Are there obstructions in the operating path? | Handles, vents, and sensors can rule out some styles immediately |
| How will the opening be used every day? | A lightly used window and a busy kitchen doorway need different solutions |
The best product choice is the one your opening can support cleanly, not the one that looks best in isolation.
That’s the trade-off people often miss. A slimmer, simpler option in the right opening usually performs better than a more elaborate system forced into a space that doesn’t suit it.
Frequently Asked Questions About Recess Dimensions
The last checks before ordering are usually the ones that save the most trouble. These are the questions that come up when the opening isn’t perfectly standard, or when one measurement seems to disagree with another.
What if the recess is angled or tapered
Measure it exactly as it is. Take the top, middle, and bottom width. Then take the left, centre, and right height. Use the smallest readings and make a note that the opening tapers.
If the taper is obvious by eye, don’t assume the screen will hide it. A neat product can only follow the shape it’s fitted into. On some openings, a face fit is the cleaner answer because it bypasses the irregular internal surfaces.
My sill is deeper than the top of the recess. Which depth do I use
Use the smallest clear working depth in the area where the product must sit. If the top of the opening is tighter than the sill, the top controls the decision.
This catches people because the sill often looks generous. But if the cassette or frame needs a consistent seating surface, the shallowest relevant point is the one that matters.
Do I need to make deductions before ordering
Usually, the safest approach is to provide the actual recess measurements and follow the supplier’s ordering instructions. Don’t invent your own deductions unless the order form specifically asks for them.
Homemade deductions are one of the most common causes of undersized products. People measure the opening correctly, then trim the figures “to be safe” and create the gap themselves.
What if there’s a handle in the way
Measure to the handle, not past it. The useful dimension is the space available before the screen reaches that obstruction.
If the handle projects into the recess, note both the overall recess depth and the reduced clear depth at the handle position. That gives a realistic picture of what can fit.
Should I measure the visible frame or the opening
Measure the opening for recess dimensions. The visible outer frame size is relevant for face-fit decisions, but it isn’t the same thing.
Many first-time buyers frequently go wrong. They measure what they can easily see from the room rather than the internal space where the product needs to sit.
A final pre-order checklist
Run through these checks before you place an order:
- Width checked three times: Top, middle, bottom. Smallest value noted.
- Height checked three times: Left, centre, right. Smallest value noted.
- Depth checked at the working point: Not just the deepest spot.
- Obstructions recorded: Handles, vents, sensors, blinds, hinges.
- Fit style chosen after measuring: Recess fit or face fit based on the opening, not guesswork.
- Notes labelled clearly: Room, window, and opening position all identified.
- Measurements reviewed once more: Especially on unusual or older frames.
If you can answer those points with confidence, you’re in a strong position to order a screen that fits properly and seals the way it should.
